Monday 22 April 2019

Are Buildings Affected by Wind Chill?

The wind chill effect is the temperature that a person feels because of the wind.

Do Buildings get wind-chill?
Air temperature feels colder combined with exposure to wind.

It's a combination of the external temperature and wind speed.

Wind-chill
For example, a bottle of water placed outside at 4ºC, exposed to the wind
will cool to the ambient temperature quicker than the same bottle placed in a fridge at 4ºC
(even with the fridge door closed).

The temperature of water in the bottle will not descend below 4ºC but the temperature will fall as it it were affected by a lower temperature.  This is why we are vulnerable to frost bite in low temperatures and high winds.  The heat can be stripped from our skin very rapidly.

Wind chill effect
The wind chill table demonstrates how quickly the energy can be stripped from
a heat-producing object

Because a building produces heat, it is also affected by the wind chill effect.

building wind-chill
This is because heat is stripped away more quickly from an object subjected to wind.

They just can't tell us because, unlike people, they generally have no sensors to register the effect and they do not normally shiver.  It generally relates to the amount of additional heat a building has to produce to compensate for the wind chill effect.

building wind-chill
Buildings in exposed locations (top row above) will feel wind chill more than
buildings in sheltered locations or less exposed surface area (bottom row).

Fortunately the wind chill effect is subject to conditions which can be influenced by building design.  This could save up to 20% of energy used for heating.

Managing wind-chill
Adding an additional skin to the building can create a zone 20 to 200cm where air can be
tempered and controlled to reduce the wind chill effect.

Buildings with a single skin or narrow ventilation cavity are more affected by wind chill.  Adding additional layers, obstacles or landscaping can reduce the the affect.

Managing wind-chill
Landscaping and trees can reduce the the exposure of a building to the wind (left)
Adding a secondary skin to the building can create a controlled environmental space reducing wind chill exposure (right)

Managing wind-chill
Building in to the ground, under a green roof or next to water etc. (left)
Or building a mega roof such as Buckminster Fuller's project for Manhattan (right)

Managing wind-chill
Using a green roof and green living wall reduces wind chill (left)
Using an external wall to shield the building also helps (right)

Some of the many ways building design can be articulated to minimise the affects of wind chill.

Thursday 18 April 2019

How Simple Can Architecture Be?

During a design workshop with a school I was asked by a disgruntled sixth-form student

'Why do you architects make out that your work is so complicated?  All buildings have to do is look good, function and last!'

It's true!  Why do architects overthink certain areas of their work more than others, to the detriment of a 'whole-process' strategy of thinking?  Architects need to ensure that their projects:
  1. will look good
  2. function properly
  3. will last
This staring point is simple and makes a useful framework to work from.

How simple can Architecture be?
Developing this with an idea-gram, the simplicity quickly becomes populated with lots of more complicated procedures and areas of work, but bringing them in to the framework of these three points gives them relevance, importance and establishes context.

Some considerations added to this simple framework
This idea-gram was thrown together with ideas considered relevant to this context.  Every Architect will have a different response.  Several of the areas included here extend beyond the standard Architect's scope of work, suggesting greater integration with project management, construction management, logistics and service & maintenance areas for example.   To ensure these three headline criteria are successful,  perhaps architecture does require a greater degree of involvement with other parties engaged in the construction, operation, service and maintenance of a project?

Friday 12 April 2019

Space Filling Spheres

A small study to see what happens when stacking spheres are converted in to space-filling polyhedra:

It is interesting to play with space-filling shapes in architectural design, just to see what can be created and examine their significance to architecture and design.  Tessellating polyhedra is a big subject.  Part of it are the forms which are created when stacking spheres are converted in to space filling polyhedra.  These are useful because they represent some of the most compact arrangements of forms.  Regularly stacked spheres occupy approximately 74% of space.

In architecture and design, it points to geometric shapes that offer a low surface area to volume ratio, with a potentially low energy loss through the envelope, or components which might prove easier to move and transport.

There are several ways to stack spheres in compact arrangements, but they seem to fall in to two basic arrangements.  Stacking spheres with a square base also creates an arrangement with a triangular base on the diagonal.  Working with a triangular base, the stacking arrangement offers the opportunity to rotate the second layer through 60º.  The spheres still stack but create different arrangements and different space filling polyhedra.

Matching the arrangement of the layers gives a trapezo-rhombic dodecahedron as a space-filling polyhedra.

Trapezo-rhombic dodecahedron

Rotating the arrangement of layers gives a rhombic dodecahedron as a space filling polyhedra.

Rhombic dodecahedron

The trapezo-rhombic dodecahedron and the rhombic dodecahedron are similar.  If a rhombic dodecahedron is sliced across the central horizontal axis and one half mirrored, it creates the trapezo-rhombic dodecahedron.

Trapezo-rhombic dodecahedron to rhombic dodecahedron
slicing through the horizontal plane, making a mirror image and reapplying


It also replicates the arrangement of atoms and crystal structures in nature.

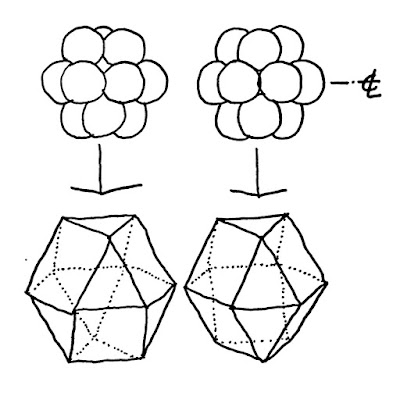

Making the rotation about the horizontal centre of the arrangement creates a cuboctahedron.
Keeping the same arrangement throughout creates a variation on the cuboctahedron.
Because the layer arrangements can be changed, there is an infinate variety of ways space-filling spheres can be stacked.
Reference: The Penguin Dictionary of Curious and Interesting Geometry, David Wells, 1991.
The cuboctahedron is one of the key geometries of Buckminster Fuller's Jitterbug.

The economic stacking of these space filling polyhedra could inform the assembly of units in buildings.

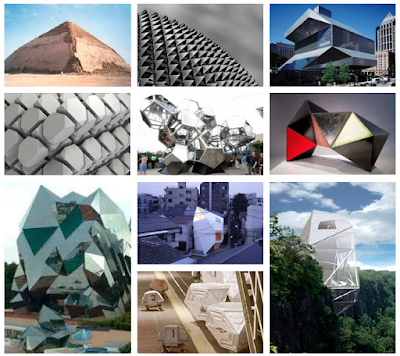

Polyhedra and Architecture
Space-filling polyhedra have been investigated in architecture, art and science fiction as a conceptual link between nature, technology, society and culture.
